좋은 가격 온라인으로

제품 세부 정보

Created with Pixso. 집 Created with Pixso. 상품 Created with Pixso.
냉각 증발기
Created with Pixso. DSL30 Dual Airflow Cold Room Evaporator
DSL30 Dual Airflow Cold Room Evaporator
  • 이름
  • 이름
  • 이름
  • 이름

DSL30 Dual Airflow Cold Room Evaporator

브랜드 이름: Ruifujie
모델 번호: DSL-6.2/30
모크: 1
가격: Discussed
배달 시간: 1개월
지불 조건: T/T, 서부 동맹
자세한 정보
제품 설명
자세한 정보
원래 장소:
중국
모델:
DSL-6.2/30
공칭 냉동 용량:
6.2KW
일치하는 영역:
30㎡
팬 파워:
140W
애플리케이션:
찬 방, 냉장고
MOQ:
1세트
보증:
1년
포장:
목재 가구 포장
포장 세부 사항:
나무 케이스
공급 능력:
100개
강조하다:

DSL30 cold room evaporator

,

dual airflow refrigeration evaporator

,

cold room evaporator with warranty

제품 설명
DSL30 Dual Airflow Cold Room Evaporator
The DSL-6.2/30 dual airflow cold room evaporator is a compact ceiling-mounted air cooler engineered for medium-sized medium-temperature cold storage applications, including fruit and vegetable preservation warehouses, small food processing plants, and commercial cold chain facilities.

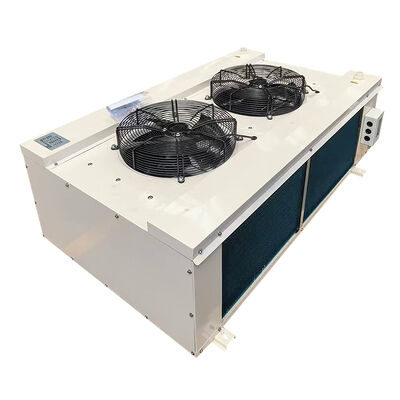

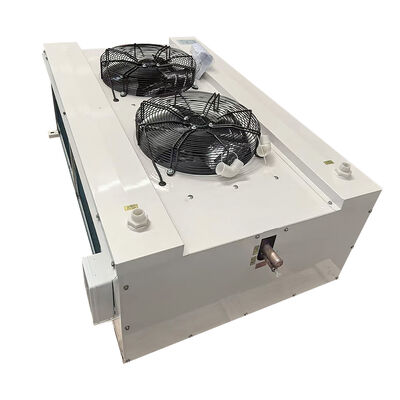

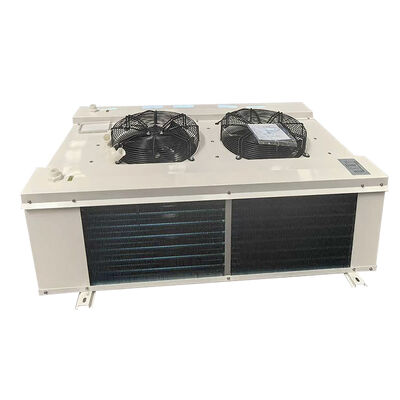

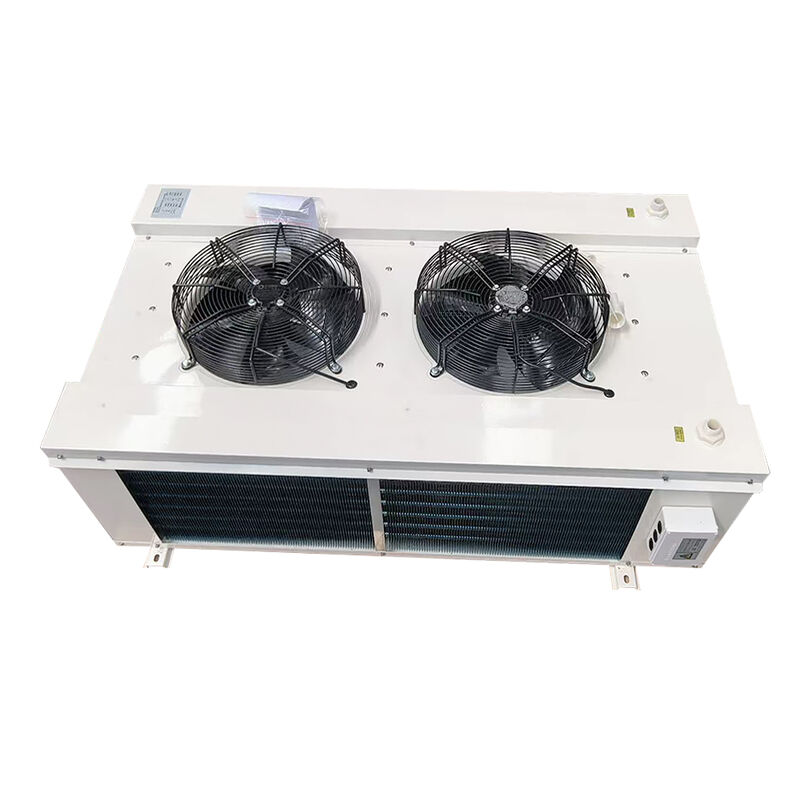

DSL30 Dual Airflow Cold Room Evaporator unit view DSL30 evaporator technical details and installation view
Product Advantages
With a nominal cooling capacity of 6200W and dual-outlet design delivering 2×2290m³/h airflow, this evaporator eliminates temperature dead zones common in single-outlet systems, maintaining uniform temperatures across the entire storage space and reducing product dehydration.
Medium-sized cold storage facilities often face challenges with uneven airflow distribution creating temperature variations and quality inconsistencies, along with rapid frost buildup on evaporator coils due to moderate humidity levels. The DSL-6.2/30 addresses these issues with balanced dual-outlet airflow and optimized 4.5mm fin design, minimizing temperature fluctuations and reducing defrost cycle frequency.
Constructed with high-purity copper heat exchange tubes and anti-corrosion aluminum fins with 4.5mm spacing, this DSL-series air cooler features excellent heat transfer efficiency and rust resistance, optimized for continuous operation in medium-temperature environments. The 4.5mm fin spacing balances airflow efficiency and anti-frost performance, reducing ice buildup even in moderate-humidity conditions. Compatible with mainstream refrigerants including R22, R404A, and R134A, it supports flexible system matching. The compact ceiling-mounted structure maximizes usable floor space, while the integrated dual 1600W defrost system prevents ice blockages in both coil and drain pan, simplifying routine maintenance.
Technical Specifications
Model DSL-6.2/30
Nominal Cooling Capacity 6200 W
Heat Exchange Area 30 ㎡
Tube Volume 5.3 L
Inlet & Outlet Pipe Diameter φ16 mm / φ22 mm
Coil Defrosting Power 1600 W
Water Dish Defrosting Power 1600 W
Company Profile
Ruifujie is a leading modern refrigeration manufacturer with over 20 years of specialized experience in the global cold chain industry. Our comprehensive product portfolio includes scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, along with supporting cold room units, quick-freezing equipment, and ice making machines.
We provide full-range OEM and ODM customization services to meet the diverse and personalized needs of clients worldwide. Our products are widely exported to Russia, the United Kingdom and the United Arab Emirates. Backed by advanced production technology, strict quality control, and competitive pricing, we have built long-term stable partnerships with global buyers and earned consistent positive feedback from overseas customers.
Shenzhen Ruifujie Technology manufacturing facility Warehouse and inventory management at Ruifujie
Packaging and Shipping
Packaging and shipping process for refrigeration equipment
Frequently Asked Questions
What benefits does the dual-outlet design offer for medium-sized cold storage?
The dual-outlet airflow eliminates temperature dead zones common in single-outlet systems, ensuring uniform cooling across the entire storage space and reducing product dehydration caused by uneven temperatures.
How does the 4.5mm fin spacing improve performance in medium-temperature environments?
The 4.5mm fin spacing balances airflow efficiency and anti-frost performance, reducing rapid ice buildup on the coil surface and maintaining consistent cooling efficiency in moderate-humidity conditions.
What advantages does the dual defrost system provide in continuous medium-temperature operation?
The integrated coil and water dish defrost heaters deliver thorough, balanced defrosting, preventing ice blockages in both the coil and drain pan, reducing maintenance frequency and supporting stable continuous operation.
What is your policy for sample orders of refrigeration equipment?
Samples are charged, and the sample fee will be refunded after the bulk order meets the requirements.
What trade terms do you support for international orders?
We support FOB Shenzhen and EXW trade terms, with settlement in US dollars.
