| 브랜드 이름: | copeland |
| 모델 번호: | Zh13kve-Pfj |
| 모크: | 1pcs |
| 가격: | community |
| 배달 시간: | 지불 후에 5-8 일 |
| 지불 조건: | T/T, 서부 동맹 |

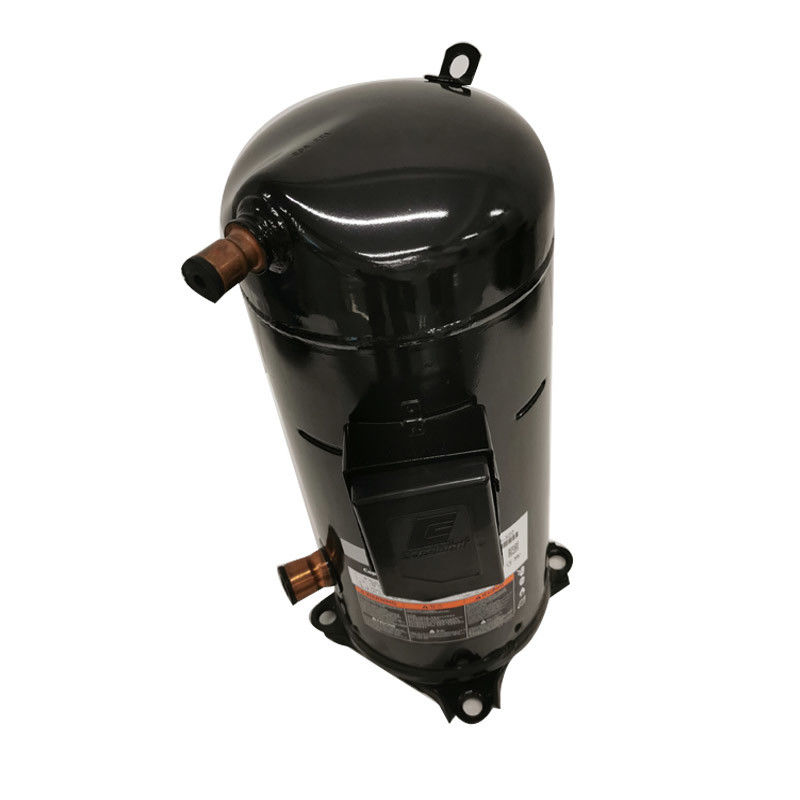

Scroll Compressors ZH series ZH06KVE-TFM-526 for Heat Pump Applications
| Displacement [m³/h]: | 11,7 | |
| Sound power [dBA]: | 76 | |
| Sound pressure level [dB]: | 65 | |
| Net Weight [kg]: | 38 | |
| Gross Weight [kg]: | 41 | |
| Oil charge [dm³]: | 1,9 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 20 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 1 |
| Power supply [V/~/Hz]: | 220-240V/1/50Hz | |
| Locked rotor current [A]: | 160 | |
| Max. operating current [A]: | 30 | |
| Winding resistance [Ω]: | 0,4 | |
| Start winding resistance [Ω]: | 1,2 |
| inches | |||
| Suction connection with supplied sleeve: | 7/8" | ||
| Discharge connection with supplied sleeve: | 1/2 |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
Copeland Scroll™ Compressors For Heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range. Features such as brazed fitting connections and special versions for the tandemization of compressors fit the requirements of heat pump systems.
In summary, to avoid excessive discharge gas temperatures during normal operation, care must be taken to ensure that the compressor envelope is respected in terms of evaporating and condensing temperatures and in terms of superheat. To avoid excessive discharge gas temperatures during abnormal operation, discharge gas temperature protection is required.
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
