좋은 가격 온라인으로

제품 세부 정보

Created with Pixso. Created with Pixso. 상품 Created with Pixso.
Copeland 일폭 압축기
Created with Pixso. 열 펌프 Zh38K4e -트프드 5HP 코플랜드 코프레임틱 압축기

열 펌프 Zh38K4e -트프드 5HP 코플랜드 코프레임틱 압축기

브랜드 이름: copeland
모델 번호: Zh38K4e-Tfd
모크: 1pcs
가격: community
배달 시간: 지불 후에 5-8 일
지불 조건: T/T, 서부 동맹
자세한 정보
원래 장소:
중국
인증:
CE
유형:
냉장고 압축기
명목상 모터 힘:
5HP
진지변환:
14,4년
음압 수준:
60
무게 [kg:
2
기름 책임 [dm ³:
2
전력 공급 [V/~/Hz:
2
정착된 회전자 경향 [A:
2
포장 세부 사항:
나무 상자
공급 능력:
10000pcs /week
강조하다:

5HP 스크롤 압축기

,

Zh38K4e-Tfd

제품 설명

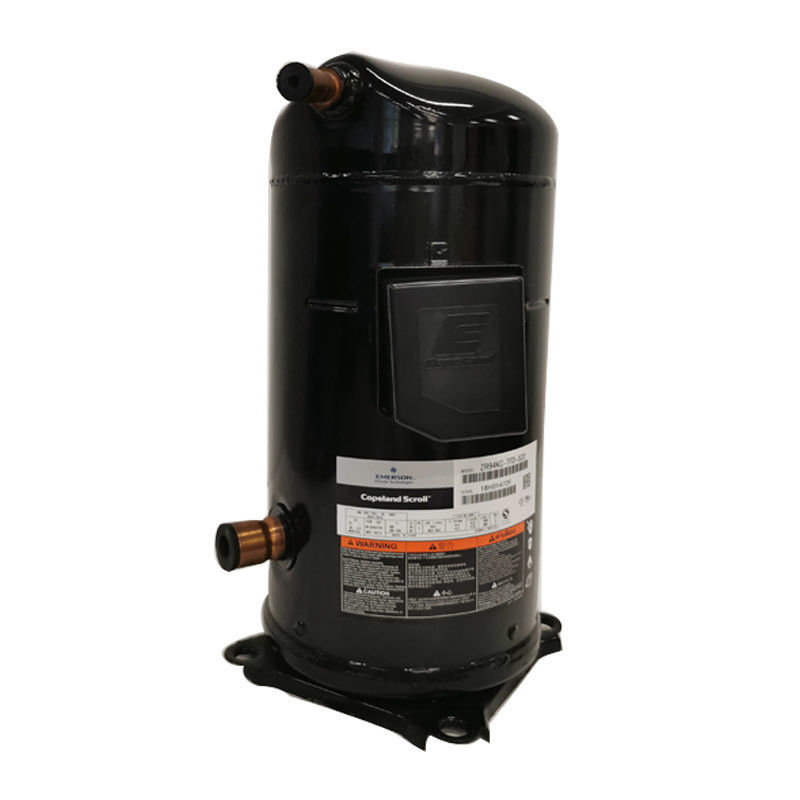

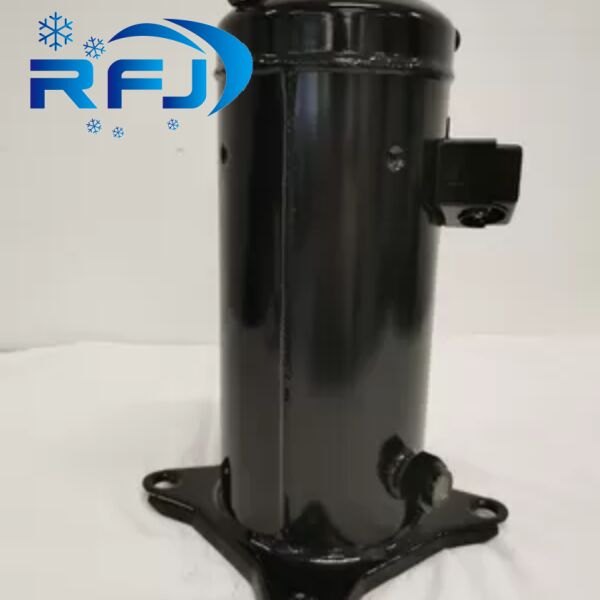

5HP Zh Scroll Compressors Zh38K4e-Tfd Copeland Copelametic Compressor for Heat Pump



1, Product Description:



Type: Hermetic piston compressors
Producer: Copeland
Series: ZH

Model: ZH38K4E-TFD

Technical data

Nominal motor power [HP]: 5
Displacement [m³/h]: 14,4
Sound pressure level : 60
Weight [kg]: 41
Oil charge [dm³]: 1,89

Electrical data

Power supply [V/~/Hz]: 380-420V/3/50Hz
Locked rotor current [A]: 64
Max. operating current [A]: 14
Winding resistance ]: 2,75

Connections
  milimeters inches
Suction line:   7/8"
Discharge line:   1/2"



열 펌프 Zh38K4e -트프드 5HP 코플랜드 코프레임틱 압축기 0

2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency




3.Drawings



열 펌프 Zh38K4e -트프드 5HP 코플랜드 코프레임틱 압축기 1



ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price

3.High Efficiency

ZH heating compressors with Enhanced Vapor Injection have
been further optimized to ensure best-in-class performances
in dedicated heating applications. This technology allows
replacement of traditional boilers in new building and retrofit
applications, without the need of substituting existing heating
elements in the building.ZH Copeland Scroll heating compressors with Enhanced Vapor
Injection have an additional port to inject vapor within the
compression process. This improves system performances
by increasing the heating capacity for a given compressor
displacement. Additional benefits are the reduction of the gas



4, Our main compressor lines are :

· compressors,

· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
